Lake AVB20MICT 20G 2-Conductor Microphone Cable, Black - 1000 FT

Lake AVB20MICT 20G 2-Conductor Microphone Cable, Black - 1000 FT

LAKAVB20MICTBK-1000F

$568.00 USD
$568.00 USD
Sale Sold out
LAKAVB20MICTBK - Lake AVB20MICT 20G 2-Conductor Microphone Cable, Black - 1000 Ft Reel

For price and availability please call 1-888-999-4283
or email customerservice@haveinc.com

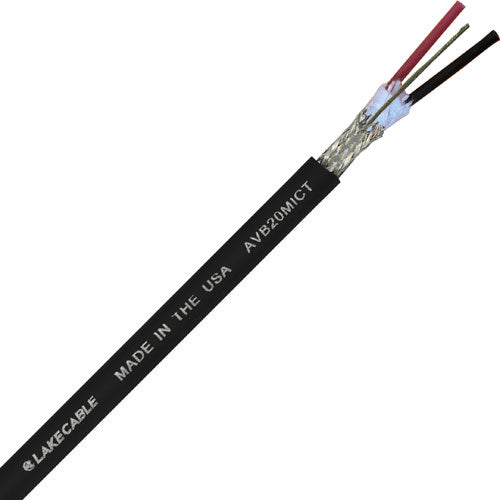

Lake AVB20MICT is a 20 AWG shielded cable with 2 conductors, stranded tin copper, TPR insulation and tinned copper braided shielding. It has an overall TPR jacket for Microphone and/or Line Level Balanced Analog Audio applications, is manufactured in the USA and RoHS compliant.

Features & Specifications:
  • Conductor: 20 AWG stranded annealed tinned copper
  • 2 conductors
  • Insulation: Thermoplastic Rubber
  • Drain Wire: 24 AWG 26-strand tinned copper
  • Cable Shield: 36AWG Tinned Copper Braid - 85% Coverage
  • Jacket: Thermoplastic Rubber
  • Jacket Color: Black
  • Cable O.D.: 0.261
    • >
  • Cable made in the USA
  • Conductor DC Resistance: 10.6 Ohm/Mft @ 20ºC
  • Shield DC Resistance: 4.5 Ohm/Mft @ 20ºC
  • Capacitance - 20.3 pF/ft. +/-10%
  • Impedance: 68 Ohm
  • Maximum operating voltage: 600V
    •
