Lake AVB2212ASC 12-Pair 22G Analog Audio Cable, Black - 500 FT

Lake AVB2212ASC 12-Pair 22G Analog Audio Cable, Black - 500 FT

LAKAVB2212ASCBK-0500F

$1,090.19 USD
$1,090.19 USD
Sale Sold out
LAKAVB2212ASCBK - Lake AVB2212ASC 12-Pair 22G Analog Audio Cable, Black - 500 Ft Reel

For price and availability please call 1-888-999-4283
or email customerservice@haveinc.com

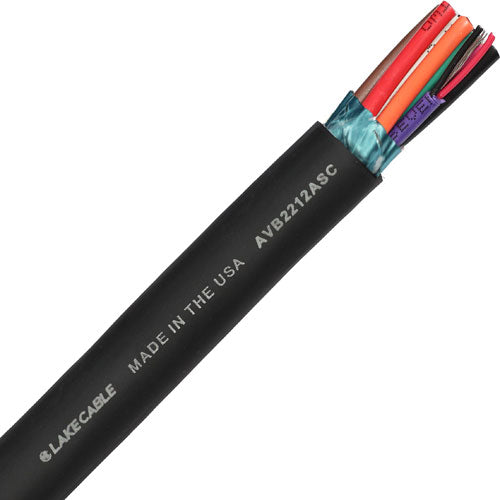

Lake AVB2212ASC is a 22 AWG 12 shielded pair audio cable constructed with stranded tinned copper conductors with polypropylene insulation, aluminum/mylar shield with stranded tinned copper drain wire and an overall PVC jacket for line level analog audio applications. Lake AVB2212ASCBK is manufactured in the USA and (UL) listed CL3R or CMR c(UL)US 75°C.

Features & Specifications:
  • Conductor: 22 AWG Stranded Annealed Tinned Copper
  • 12 Shielded Pair (2 conductors)
  • Insulation: Polypropylene
  • Drain Wire: 22 AWG 7-strand tinned copper
  • Pair Shield: Heat fusible Aluminum/Mylar - 100% coverage
  • Jacket: PVC
  • Jacket Color: Black
  • Cable O.D.: 0.137"
  • Cable made in the USA - RoHS Compliant
  • DC Resistance: 14.1 ohms/1000ft
  • Shield DC Resistance: 14.3 ohms/1000ft
  • Capacitance - Conductor to Conductor: 27.6 pF/ft
  • Capacitance - Conductor to Shield: 49.68 pF/ft
  • Impedance: 55 Ohm
  • UL listed as type CMR
  • Made in USA
    •
