Lake AVB241A 1-Pair 24G Analog Audio Cable, Black - 1000 FT

Lake AVB241A 1-Pair 24G Analog Audio Cable, Black - 1000 FT

LAKAVB241ABK-1000F

$129.63 USD
$129.63 USD
Sale Sold out
LAKAVB241ABK - Lake AVB241A 1-Pair 24G Analog Audio Cable, Black - 1000 Ft Reel

For price and availability please call 1-888-999-4283
or email customerservice@haveinc.com

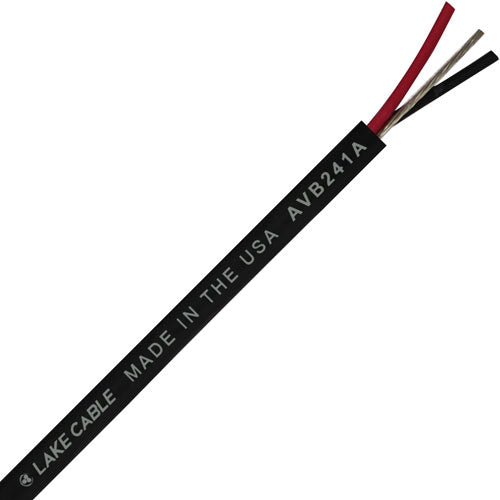

Lake AVB241A is a 24 AWG 1 shielded pair audio cable constructed with stranded tinned copper conductors with polypropylene insulation, aluminum/mylar shield with stranded tinned copper drain wire and an overall PVC jacket for line level analog audio applications. Lake AVB241A is manufactured in the USA and (UL) listed CL3R or CMR c(UL)US 75°C.

Features & Specifications:
  • Conductor: 24 AWG Stranded Annealed Tinned Copper
  • Dual Shielded Pair (2 conductors)
  • Insulation: Polypropylene
  • Drain Wire: 24 AWG 7-strand tinned copper
  • Pair Shield: Heat fusible Aluminum/Mylar - 100% coverage
  • Jacket: PVC
  • Jacket Color: Black
  • Cable O.D.: 0.008"
  • Cable made in the USA - RoHS Compliant
  • DC Resistance: 14.1 ohms/1000ft
  • Shield DC Resistance: 23.8 ohms/1000ft
  • Capacitance - Conductor to Conductor: 25.22 pF/ft
  • Capacitance - Conductor to Shield: 49.68 pF/ft
  • Impedance: 60 Ohm
  • UL listed as type CMR
  • Made in USA
    •
