Lake AVB242AZ Dual Paired 24G Analog Audio Cable, Black - 1000 FT

Lake AVB242AZ Dual Paired 24G Analog Audio Cable, Black - 1000 FT

LAKAVB242AZBK-1000F

$277.50 USD
$277.50 USD
Sale Sold out
LAKAVB242AZBK-1000F - Lake AVB242AZ Dual Channel 24G Analog Audio Cable, Black - 1000 Ft Reel

For price and availability please call 1-888-999-4283
or email customerservice@haveinc.com

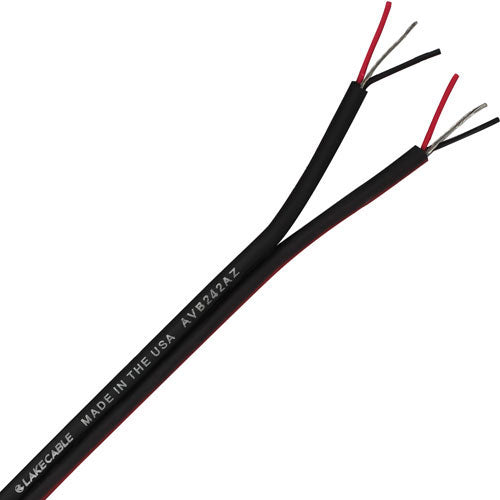

Lake AVB242AZ is a 24 AWG Dual shielded pair audio cable constructed with stranded tinned copper conductors with polypropylene insulation, aluminum/mylar shield with stranded tinned copper drain wire and an overall PVC jacket for line level analog audio applications. Lake AVB242AZ is manufactured in the USA and (UL) listed CL3R or CMR c(UL)US 75°C.

Features & Specifications:
  • Conductor: 24 AWG Stranded Annealed Tinned Copper
  • Dual Shielded Pair (2 conductors)
  • Insulation: Polypropylene
  • Drain Wire: 24 AWG 7-strand tinned copper
  • Pair Shield: Heat fusible Aluminum/Mylar - 100% coverage
  • Jacket: PVC
  • Jacket Color: Black
  • Cable O.D.: 0.3"
  • Cable made in the USA - RoHS Compliant
  • DC Resistance: 14.1 ohms/1000ft
  • Shield DC Resistance: 14.3 ohms/1000ft
  • Capacitance - Conductor to Conductor: 27.6 pF/ft
  • Capacitance - Conductor to Shield: 49.68 pF/ft
  • Impedance: 55 Ohm
  • UL listed as type CMR
  • Made in USA
    •
