Lake AVB248DSC 8-Pair 24G Digital Audio Cable - Violet - 1000 FT

Lake AVB248DSC 8-Pair 24G Digital Audio Cable - Violet - 1000 FT

LAKAVB248DSCVL-1000F

$1,836.36 USD
$1,836.36 USD
Sale Sold out
LAKAVB248DSCVL-1000F - Lake AVB248DSC 8-Pair 24G Digital Audio Cable - Violet - 1000 Ft Reel

For price and availability please call 1-888-999-4283
or email customerservice@haveinc.com

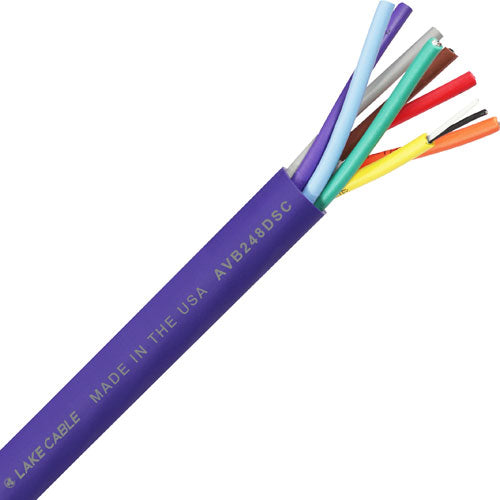

Lake AVB248DSC is a 24 AWG 8 shielded pair audio cable constructed with stranded tinned copper conductors with polypropylene insulation, aluminum/mylar shield with stranded tinned copper drain wire and an overall PVC jacket for line level digital audio applications. Lake AVB248DSC is manufactured in the USA and (UL) listed CL3R or CMR c(UL)US and FT-4.

Features & Specifications:
  • Conductor: 24 AWG Stranded Annealed Tinned Copper
  • 8 Pair (2 conductors)
  • Insulation: Polypropylene
  • Drain Wire: 24 AWG 7-strand tinned copper
  • Pair Shield: Heat fusible Aluminum/Mylar - 100% coverage
  • Jacket: PVC
  • Jacket Color: Violet
  • Cable O.D.: 0.177"
  • Cable made in the USA - RoHS Compliant
  • DC Resistance: 14.1 ohms/1000ft
  • Shield DC Resistance: 23.8 ohms/1000ft
  • Capacitance - Conductor to Conductor: 12.5pF/ft
  • Capacitance - Conductor to Shield: 25 pF/ft
  • Impedance: 110 Ohm
  • UL listed as type CL3R per UL 13 or CMR per UL 444
  • Made in USA
    •
