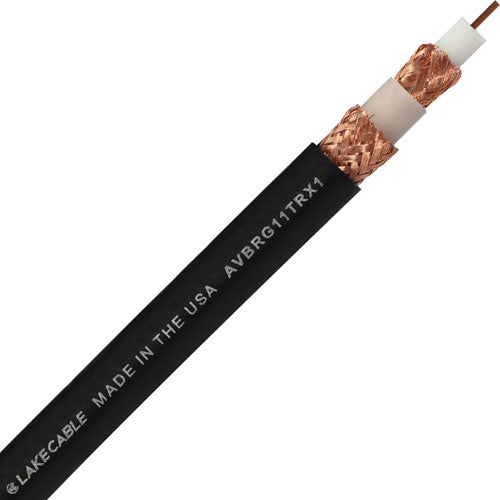

Lake AVBRG11TRX1 RG11 1-Channel 15G Type Triax Solid Center Conductor, Black - 500 FT

Lake AVBRG11TRX1 RG11 1-Channel 15G Type Triax Solid Center Conductor, Black - 500 FT

LAKAVBRG11TRX1-0500F

$685.48 USD
$685.48 USD
Sale Sold out
LAKAVBRG11TRX1 - Lake AVBRG11TRX1 RG11 1-Channel 15G Type Triax Solid Center Conductor, Black - 500 Ft Reel

For price and availability please call 1-888-999-4283
or email customerservice@haveinc.com

Lake AVBRG59TRX1 is a 15 AWG RG11 1-Conductor solid bare copper Triaxial cable, with foamed PE, 90% tinned copper braid, a TPE belt, 90% tinned copper braid. It has an overall mink PVC jacket and is Non-UL Rated.

Features & Specifications:

  • Conductor: 15AWG Solid
  • 1 conductor
  • Insulation: Annealed Bare Copper
  • Tape Shield: Aluminum/Mylar/Aluminum, 100% Coverage (Non-Fusible Foil)
  • Braid Shield 1: 34 AWG, 6.05 PPI, 90% Tinned Copper Braid Shield Coverage (16 Carriers)
  • Polyvinylchloride (PVC) (Mink)
  • Jacket Color: Black
  • Cable O.D.: 0.312" +/- 0.005"
  • Cable made in the USA
  • DC Resistance: 3.26 ohms/Mft @ 20ºC
  • Shield 1 DC Resistance: 2.4 ohms/Mft @ 20ºC
  • Shield 2 DC Resistance: 1.6 ohms/Mft @ 20ºC
  • Capacitance: 17.5 pF/ft
  • Impedance: 75 O +/- 3 @ 20ºC
  • Velocity of Propagation: 78%
    •
