Lake AVBRG59DBHD RG59 HD/SDI Coax Stranded 21AWG Black 500 FT

Lake AVBRG59DBHD RG59 HD/SDI Coax Stranded 21AWG Black 500 FT

LAKAVBRG59DBHD-0500F

$270.00 USD
$270.00 USD
Sale Sold out

For price and availability please call 1-888-999-4283
or email customerservice@haveinc.com

LAKAVBRG59DBHD-0500F - Lake AVBRG59DBHD Tactical RG59 HD/SDI Stranded Coax, 21 AWG, Double Braid Shield, Black - 500 Ft Reel

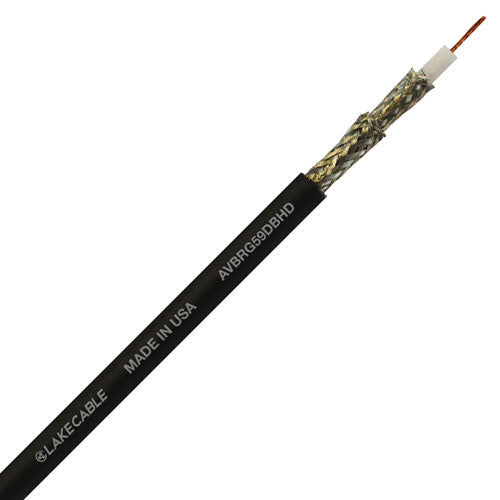

Lake Cable AVBRG59DBHD is a 21 AWG 19-strand bare copper conductor tactical HD/SDI coax cable with foamed PE insulation, dual tinned copper braid shields and an overall finish PVC jacket. This is a Tactical, Ultra flexible cable for High definition /Serial Digital Interface video applications, suitable for field use.

Features & Specifications:

  • Center Conductor: 21 AWG 19 Strand, annealed bare copper
  • Dielectric: Foam Polyethylene
  • Double Shield: Both tinned copper braid, both 90% coverage
  • Jacket: Flexible Finish Polyvinylchloride (PVC), tactical grade suitable for field use
  • Jacket Color: Black
  • Cable O.D.: 00.242” ± 0.005”
  • DC Resistant: 14.3 ohms/Mft @ 20°C
  • Capacitance: 17 pF/ft.
  • Shield DC Resistance: 3.8 ohms/Mft @ 20ºC
  • Propagation Velocity: 78%
  • Impedance: 75-ohm /Mft
  • Meets or exceeds the requirement of SMPTE 292M and 424M standards for HD/SDI
  • Maximum operating voltage 300V
  • All materials used in the manufacture of this cable are RoHS compliant
  • MADE IN THE USA

  • Lake Cable Maximum Distance by Video Format Chart
    •
