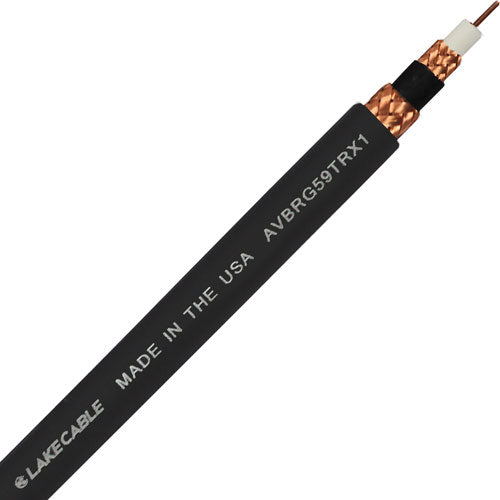

Lake AVBRG59TRX1 RG59 1-Channel 21G Type Triax Solid Center Conductor, Black - 1000 FT

Name: Lake AVBRG59TRX1 RG59 1-Channel 21G Type Triax Solid Center Conductor, Black - 1000 FT
Brand: LAKE CABLE
SKU: LAKAVBRG59TRX1-1000F
Price: 805.48 USD
Availability: InStock

SKU:LAKAVBRG59TRX1-1000F

$805.48 USD

Sale Sold out

For price and availability please call 1-888-999-4283
or email customerservice@haveinc.com

LAKAVBRG59TRX1 - Lake AVBRG59TRX1 RG59 1-Channel 21G Type Triax Solid Center Conductor, Black - 1000 Ft Reel

Lake AVBRG59TRX1is a 21 AWG RG6 1-Conductor solid bare copper Triaxial cable, with foamed PE, 90% tinned copper braid, a TPE belt, 90% tinned copper braid. It has an overall mink PVC jacket and is Non-UL Rated.

Features & Specifications:

Conductor: 23AWG Solid

1 Conductor

Insulation: Annealed Bare Copper

Tape Shield: Aluminum/Mylar/Aluminum, 100% Coverage (Non-Fusible Foil)

Braid Shield 1: 34 AWG, 6.05 PPI, 90% Tinned Copper Braid Shield Coverage (16 Carriers)

Polyvinylchloride (PVC) (Mink)

Jacket Color: Black

Cable O.D.: 0.360" +/- 0.005"

Cable made in the USA

DC Resistance: 14.3 ?/Mft @ 20ºC

Shield 1 DC Resistance: 2.7 ?/Mft @ 20ºC

Shield 2 DC Resistance: 2.4 ?/Mft @ 20ºC

Capacitance: 17.0 pF/ft

Impedance: 75 O +/- 3 @ 20ºC

Velocity of Propagation: 78%
