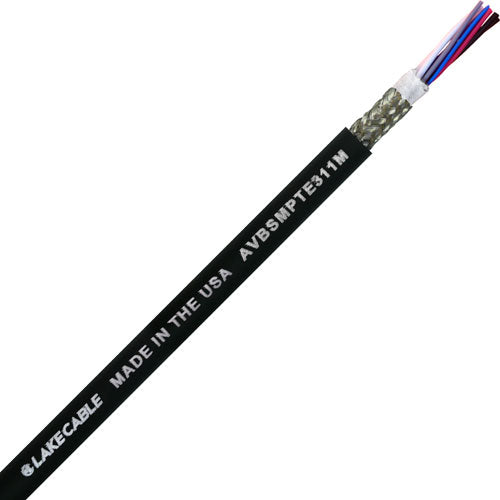

Lake AVBSMPTE311M Hybrid Fiber Optic Camera Cable Remote 1000 FT Reel

Lake AVBSMPTE311M Hybrid Fiber Optic Camera Cable Remote 1000 FT Reel

LAKAVBSMPTE311M-1000

$1,636.36 USD
$1,636.36 USD
Sale Sold out

For price and availability please call 1-888-999-4283
or email customerservice@haveinc.com

LAKAVBSMPTE311M-1000 - Lake AVBSMPTE311M Hybrid Fiber Optic Camera Cable for remote / portable applications. Black - 1000 FT Reel

Lake AVBSMPTE311M is a four element composite cable, cabled on a planetary cabler with an overall TPE jacket. For Portable / Remote SMPTE 311M applications. (4) 20AWG 19 Stramds TC PE Insulated: (2) 24AWG 7 Strands TC PE Insulated: (1) 16AWG 19 Strands GLVS PVC Insulated: (2) 9.5 Micron fibers insulated.

Element 1: 20 AWG 4-Conductors PE Insulated (Auxiliary)

  • 20 AWG 19 Strands, Annealed Tinned Copper
  • 4 conductors
  • Insulation: Polyethylene, color code: Black, Black/White. White, White/Black

    • Element 2: 24 AWG 2-Conductors PE Insulated (Signal)
  • 24 AWG 7 Strands, Annealed Tinned Copper
  • 2 conductors
  • Insulation: Polyethylene, color code: Red, Gray

    • Element 3: 16 AWG SRPVC Insulated (Strength Member)
  • 16 AWG 19 Strands, Annealed Tinned Copper
  • Material: Galvanized Steel
  • Insulation: Semi-Rigid Polyvinylchloride, color code: Purple

    • Element 4: Two Single Mode Fibers
  • Mode Field Diameter: 9.5 ± 50 Micron (0.035” ± 0.002”)
  • Cladding Diameter: 125 ± 1 Micron
  • Color code: Blue, Yellow

    • Jacket
  • Thermoplastic Elastomer
  • Nominal Diameter: 0.362” ± 0.010”

    • Standards
  • Meets or exceeds the Requirements of SMPTE311M applications
  • All materials used in the manufacture of this cable are RoHS compliant
  • Made in the USA
    •
