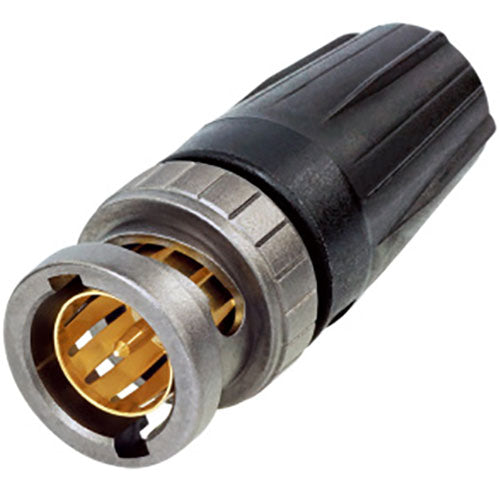

Neutrik NBNC75BFG7X Rear TWIST UHD BNC Connector for Belden 1855ENH
Neutrik NBNC75BFG7X Rear TWIST UHD BNC Connector for Belden 1855ENH
SKU:NEUNBNC75BFG7X
Regular price
$3.71 USD
Regular price
Sale price
$3.71 USD
Neutrik NBNC75BFG7X Rear TWIST UHD BNC Connector for Belden 1855ENH Argosy Image 360, Belden 1855ENH, Bryant BD SD01, Canford SDV, Canford SDV-LFH, Canford SDV-X-LFH, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Sommer 600-0101M, Sommer 600-0104M Optimized contact pin and insulator design for UHD-data transmissions Proven rearTWIST technology Swiss antraloy plating Fully compatible with conventional BNC chassis connectors Improved return loss values at high frequencies Connection Type: BNC 75 Ohm Gender: Male Contact resistance = 3 m Ohm (inner) Contact resistance = 2 m Ohm (outer) Dielectric strength: 1.5 kVdc Impedance:75 Ohm Insulation resistance> 5 G Ohm Rated voltage: < 50 V VSWR: 1.06 / >30 dB up to 6 GHz 1.13 / >24 dB up to 12 GHz 1.22 / >20 dB up to 18 Ghz Cable O.D.: 4.3mm Cable Retention: . 30 N (center) Crimp Size (shield): 5.0 Hex crimp Crimp Size (Pin): 1.07 crimp Insertion Force: < 25 N Lifetime: > 1000 mating cycles Locking Device: Bayonett Cable Anchoring: Jacket crimping Contacts: Brass (CuZn35Pb2), 0.2 æm AuCo (center contact) Shell: Brass (CuZn39Pb3) Shell plating: Antraloy Insert: PP Temperature range: - 30 C to + 85 C Contact crimpability: Complies with IEC 60803 and IEC 60352-2
Neutrik rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.
Suitable cables:
Features and Benefits:
Specifications:
