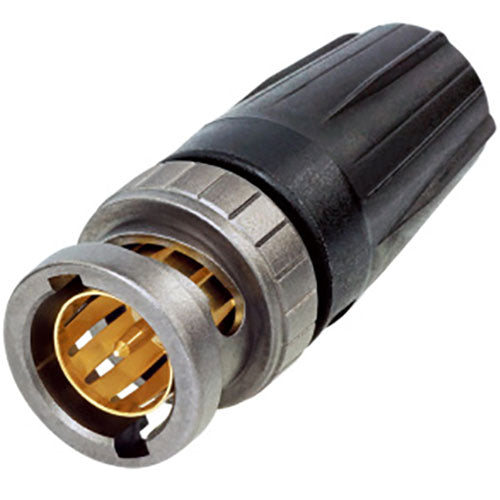

Neutrik NBNC75BLP7X Rear TWIST UHD BNC Connector for Belden 8241

Neutrik NBNC75BLP7X Rear TWIST UHD BNC Connector for Belden 8241

NEUNBNC75BLP7X

$3.71 USD
$3.71 USD
Sale Sold out
Neutrik NBNC75BLP7X Rear TWIST UHD BNC Connector for Belden 8241

Neutrik rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.

Suitable cables:

  • Belden 8241, CAE KX6A, Canare LV-61S, Cordial CVI (CVM) 06-37, CommScope 5563, Draka 0.6/3.7, Draka 0.6L/3.7, Proel HPC 805, RG59B/U, Sommer 600-0051 (M,L,S), Sommer 600-0054 (M,L,S), Klotz V06/37, Nexans HF 75 0,6/3,7 2YCY, Percon VK95

    • Features and Benefits:

  • Optimized contact pin and insulator design for UHD-data transmissions
  • Proven rearTWIST technology
  • Swiss antraloy plating
  • Fully compatible with conventional BNC chassis connectors
  • Improved return loss values at high frequencies

    • Specifications:

  • Connection Type: BNC 75 Ohm
  • Gender: Male
  • Contact resistance = 3 m Ohm (inner)
  • Contact resistance = 2 m Ohm (outer)
  • Dielectric strength: 1.5 kVdc
  • Impedance:75 Ohm
  • Insulation resistance> 5 G Ohm
  • Rated voltage: < 50 V
  • VSWR:
  • 1.06 / >30 dB up to 6 GHz
  • 1.13 / >24 dB up to 12 GHz
  • 1.22 / >20 dB up to 18 Ghz
  • Cable O.D.: 4.3mm
  • Cable Retention: . 30 N (center)
  • Crimp Size (shield): 6.47 Hex crimp
  • Crimp Size (Pin): 1.07 crimp
  • Insertion Force: < 25 N
  • Lifetime: > 1000 mating cycles
  • Locking Device: Bayonett
  • Cable Anchoring: Jacket crimping
  • Contacts: Brass (CuZn35Pb2), 0.2 æm AuCo (center contact)
  • Shell: Brass (CuZn39Pb3)
  • Shell plating: Antraloy
  • Insert: PP
  • Temperature range: - 30 C to + 85 C
  • Contact crimpability: Complies with IEC 60803 and IEC 60352-2

    • Neutrik UHD BNC
