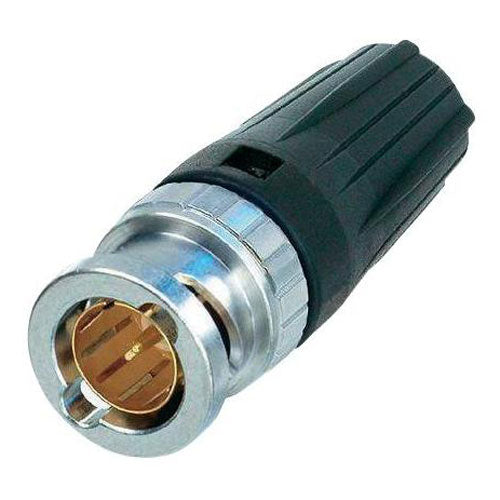

Neutrik NBNC75BRU11 75-Ohm HD rearTWIST BNC Cable Connector

The Neutrik rearTWIST BNC cable connector offers a true 75-ohm design and is perfectly suitable for HD applications.The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Features and Benefits:

• Suitable cables: Belden 1694F
• Crimp Size:Pin: 1.6 mm (square): Shield: 7.36 mm (hex)
• Crimp Die: DIE-R-BNC-PU
• Crimp Tool: HX-BNC
• “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
• Ideal for recessed bulkheads where access to the “head” of the connector might be an issue
• These connectors turn from the back and not the front
• True 75-ohm design meets the stringent HDTV / DVD requirements
• Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
• Snug-fit center pin insert provides tactile feedback
• Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
• Excellent cable protection and retention
• Precise Swiss machined brass parts for outstanding durability
• Accessories include color coded boots in 10 standard colors, crimp tool and dies
