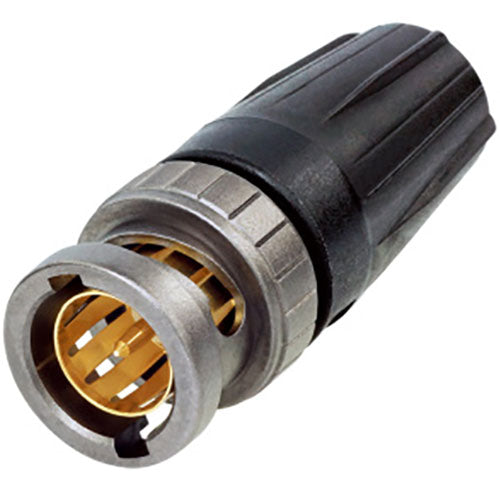

Neutrik NBNC75BTU11X Rear TWIST UHD BNC Connector for Belden 1694A

Neutrik NBNC75BTU11X Rear TWIST UHD BNC Connector for Belden 1694A

NEUNBNC75BTU11X

$3.90 USD
$3.90 USD
Sale Sold out
Neutrik NBNC75BTU11X Rear TWIST UHD BNC Connector for Belden 1694

Neutrik rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.

Suitable cables:

  • Belden 1694A (ANH), Bryant BD SD11, Clark Wire CD7506-0, CommScope 5765, Gepco VSD2001, Suhner S05163-02, Suhner S05133-07, Percon VK77

    • Features and Benefits:

  • Optimized contact pin and insulator design for UHD-data transmissions
  • Proven rearTWIST technology
  • Swiss antraloy plating
  • Fully compatible with conventional BNC chassis connectors
  • Improved return loss values at high frequencies

    • Specifications:

  • Connection Type: BNC 75 Ohm
  • Gender: Male
  • Contact resistance = 3 m Ohm (inner)
  • Contact resistance = 2 m Ohm (outer)
  • Dielectric strength: 1.5 kVdc
  • Impedance:75 Ohm
  • Insulation resistance> 5 G Ohm
  • Rated voltage: < 50 V
  • VSWR:
  • 1.06 / >30 dB up to 6 GHz
  • 1.13 / >24 dB up to 12 GHz
  • 1.22 / >20 dB up to 18 Ghz
  • Cable O.D.: 4.3 mm
  • Cable Retention: . 30 N (center)
  • Crimp Size (shield): 7.36 Hex crimp
  • Crimp Size (Pin): 1.07 crimp
  • Insertion Force: < 25 N
  • Lifetime: > 1000 mating cycles
  • Locking Device: Bayonett
  • Cable Anchoring: Jacket crimping
  • Contacts: Brass (CuZn35Pb2), 0.2 æm AuCo (center contact)
  • Shell: Brass (CuZn39Pb3)
  • Shell plating: Antraloy
  • Insert: PP
  • Temperature range: - 30 C to + 85 C
  • Contact crimpability: Complies with IEC 60803 and IEC 60352-2

    • Neutrik UHD BNC
