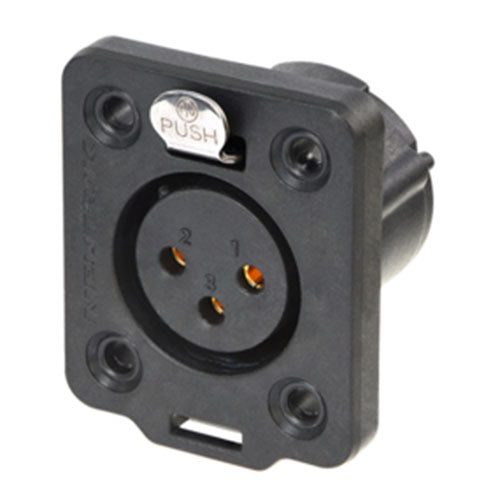

Neutrik NC3FDX-TOP 3 pole Female Chassis Connector, True Outdoor Protected (TOP)

Neutrik NC3FDX-TOP 3 pole Female Chassis Connector, True Outdoor Protected (TOP)

NEUNC3FDXTOP

$8.07 USD
$8.07 USD
Sale Sold out
Neutrik NC3FDX-TOP 3 pole Female Chassis Connector, TRUE OUTDOOR PROTECTED (TOP)

The X-TOP series NC3FDX-TOP is a "heavy-duty" XLR chassis connector for outdoor use. Outdoor protected by mating with related cable connector of the XLR TOP range (IP65 and UL50E). Gold contacts are standard.

Features and Benefits:

  • Heavy-duty sealed XLR connector range for harsh and demanding environment
  • Outdoor protection according to IP65 and UL50E (in combination with TOP range counterpart)
  • Uses high impact UV-resistant materials
  • Maintains sealing when in use and when disconnected

    • Technical Specs:

  • Connection Type: XLR
  • Gender: female
  • Capacitance between contacts: = 4 pF
  • Contact resistance = 5 mO
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GO (initial)
  • Rated current per contact: 16 A
  • Rated voltage: < 50 V
  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 5000 mating cycles
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Mounting Direction: Front mounting
  • Chassis Shape: D
  • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Stainless steel
  • Gasket: TPE
  • Shell: Polyamide (PA 6.6 30 % GR)
  • Strain relief: Polyacetal (POM)
  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP65, UL50E (mated)
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
    •
