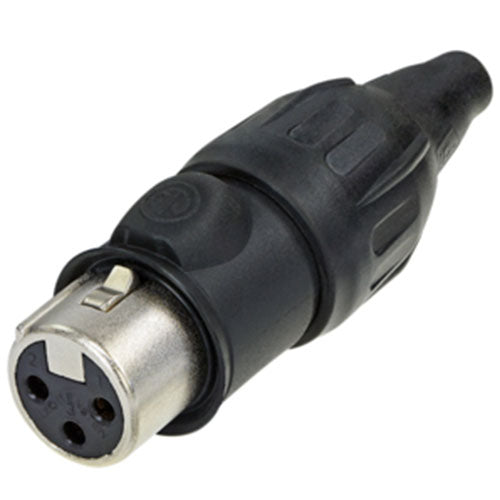

Neutrik NC3FX-TOP 3 pole Female Cable Connector, True Outdoor Protected (TOP)

Name: Neutrik NC3FX-TOP 3 pole Female Cable Connector, True Outdoor Protected (TOP)
Brand: NEUTRIK
SKU: NEUNC3FXTOP
Price: 10.27 USD
Availability: InStock

SKU:NEUNC3FXTOP

$10.27 USD

Sale Sold out

The NC3FX-TOP connector is currently on recall, and cannot be sold at this time.

Neutrik NC3FX-TOP 3 pole Female Cable Connector, TRUE OUTDOOR PROTECTED (TOP)

The Neutrik X-TOP series NC3FX-TOP is a "heavy-duty" XLR cable connector for outdoor use. Outdoor protected by mating with related cable or chassis connector of the XLR TOP range (IP65 and UL50E). Gold contacts are standard.

Features and Benefits:

Heavy-duty sealed XLR connector range for harsh and demanding environment

Outdoor protection according to IP65 and UL50E (in combination with TOP range counterpart)

Uses high impact UV-resistant materials

Technical Specs:

Connection Type: XLR

Gender: female

Capacitance between contacts: = 4 pF

Contact resistance: = 3 mO

Dielectric strength: 1,5 kVdc

Insulation resistance: > 10 GO (initial)

Rated current per contact: 8.3 A

Rated voltage: < 50 V

Cable O.D.: 5.0 - 8.0 mm

Insertion force: = 20 N

Withdrawal force: = 20 N

Lifetime: > 5000 mating cycles

Wiresize: max. 1.5 mm

Wiresize: max. 16 AWG

Wiring: Solder contacts

Locking device: Latch lock

Bushing: UV-resistant rubber

Contact plating: 0.2 µm Au hard alloy over 2 µm Ni

Contacts: Bronze (CuSn8)

Insert: Polyamide (PA 6.6 30 % GR)

Locking element: St3K32 (latch) / Ck 67 (spring)

Shell: Zinc diecast (ZnAI4Cu1)

Strain relief: Polyacetal (POM)

Sealing Jacket: UV-resistant rubber

Approvals: UL

Flammability: UL 94 HB

Standard compliance: IEC 61076-2-103

Protection class: IP65, UL50E (mated)

Solderability: Complies with IEC 68-2-20

Temperature range: -30 °C to +80 °C
