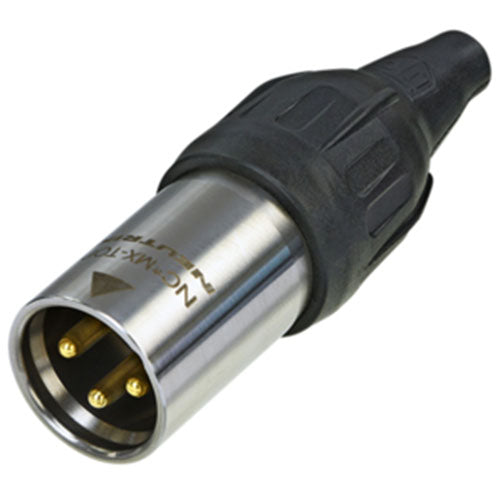

Neutrik NC3MX-TOP 3 pole Male Cable Connector, True Outdoor Protected (TOP)

Neutrik NC3MX-TOP 3 pole Male Cable Connector, True Outdoor Protected (TOP)

NEUNC3MXTOP

$10.14 USD
$10.14 USD
Sale Sold out
Neutrik NC3MX-TOP 3 pole Male Cable Connector, TRUE OUTDOOR PROTECTED (TOP)

The Neutrik X-TOP series NC3MX-TOP is a "heavy-duty" XLR male cable connector for outdoor use. Outdoor protected by mating with related cable or chassis connector of the XLR TOP range (IP65 and UL50E). Gold contacts are standard.

Features and Benefits:

  • Heavy-duty sealed XLR connector range for harsh and demanding environment
  • Outdoor protection according to IP65 and UL50E (in combination with TOP range counterpart)
  • Uses high impact UV-resistant materials

    • Technical Specs:

  • Connection Type: XLR
  • Gender: male
  • Capacitance between contacts: = 4 pF
  • Contact resistance: = 3 mO
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GO (initial)
  • Rated current per contact: 16 A
  • Rated voltage: < 50 V
  • Cable O.D.: 5.0 - 8.0 mm
  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 5000 mating cycles
  • Wiresize: max. 1.5 mm2
  • Wiresize: max. 16 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Bushing: UV-resistant rubber
  • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Stainless steel
  • Shell: Stainless steel
  • Strain relief: Polyacetal (POM)
  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP65, UL50E (mated)
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
    •
