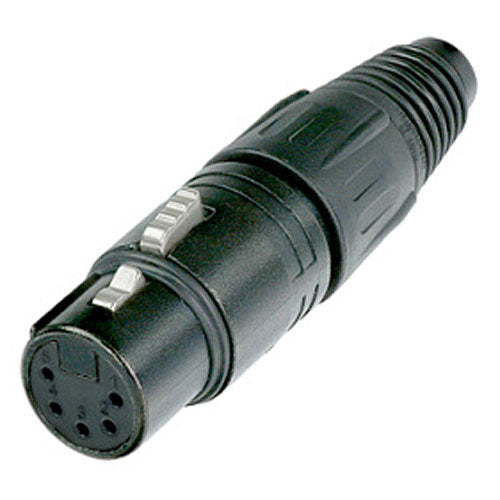

Neutrik NC5FXBAG 5-Pin XLR Female Cable End Connector

Neutrik NC5FXBAG 5-Pin XLR Female Cable End Connector

NEUNC5FXBAG

$81.71 USD
$81.71 USD
Sale Sold out
5 pole cable connector, female. Black metal housing and silver contacts.
TECHNICAL DATA
  • Electrical Number of contacts: 5 Contact resistance: = 3 m Insulation resistance - initial: > 2 G- after damp heat test: > 1 G Dielectric strength: 1500 V dc Rated current: 7.5 A AWG: 1.0 mm¦/18 AWG Capacitance between contacts: = 7 pF
  • Mechanical Lifetime: >1000 cycles Insertion / withdrawal force: = 20 N Cable O.D. range: 3.5 mm - 8.0 mm
  • Materials Shell: ZnAl4Cu1, black Cr over Cu plating Insert: PA 6.6 30% GR (glass reinforced) Contacts: CuZn39Pb3 Contact surface: gal 0.2 ¦m Au hard alloy over 2 ¦m Ni Latch lock (female): St3K32 Strain-relief clamp: POM Antikink bushing: PUR
  • Environmental Temperature range: -30¦ C to + 80¦ C Flammability: UL 94HB Solderability: complies with IEC 68-2-20
    •
