Neutrik NE8MX6-B etherCON CAT6A Cable Connector, Self-termination

Neutrik NE8MX6-B etherCON CAT6A Cable Connector, Self-termination

NEUNE8MX6B

$17.23 USD
$17.23 USD
Sale Sold out

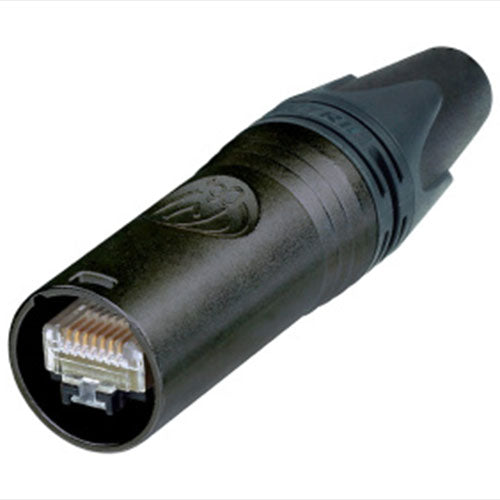

Neutrik NE8MX6-B etherCON CAT6A Cable Connector, Self-termination, Black Plating

Neutrik RJ45 etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, black plating.

The set NE8MX6-B includes a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG24/1 - AWG22/1 (solid) or AWG24/7 - AWG22/7 (stranded)..

If the insulation diameter is < 1.1 mm please refer to NE8MX-B-T.

Attention! Does not intermate with CAT6 chassis connectors

Features and Benefits:

  • Ruggedized connector with CAT6A component compliance according to ISO / IEC 11801 and TIA / EIA 568-C.2
  • PoE+ compliant according to 802.3at Type2
  • IP 65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
  • Rugged latch lock system million fold proven
  • Intermateable with the existing etherCON CAT5 range
  • Unique Neutrik chuck-type strain relief
  • Use HX-CAT6A Parallel press tool for etherCON CAT6A series
    •
