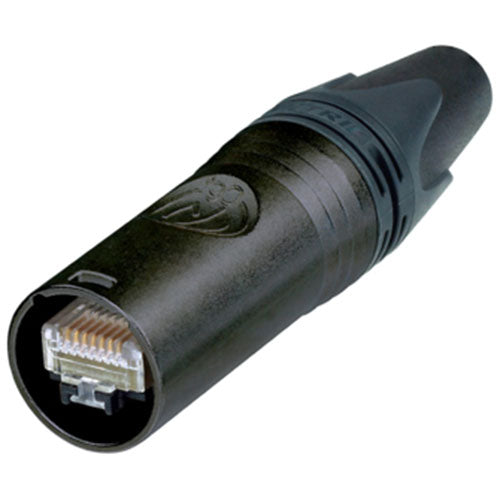

Neutrik NE8MX6-B-T etherCON CAT6A Cable Connector, Self-termination

Neutrik NE8MX6-B-T etherCON CAT6A Cable Connector, Self-termination

NEUNE8MX6BT

$17.40 USD
$17.40 USD
Sale Sold out
Neutrik NE8MX6-B-T etherCON CAT6A Cable Connector, Self-termination, Black Plating

Neutrik RJ45 etherCON CAT6A cable connector self-termination, for insulation diameter < 1.1 mm, black plating.

The set NE8MX6-B-T consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG26/1 - AWG22/1 (solid) or AWG27/7 - AWG22/7 (stranded).

If the insulation diameter is > 1.1 mm please refer to Neutrik NE8MX6-B.

ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B

Features and Benefits:

  • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
  • Intermateable with the existing etherCON CAT5 range
  • PoE+ compliant according to 802.3at Type2
  • Rugged latch lock system million fold proven
  • Unique Neutrik chuck-type strain relief
  • Includes a CAT6a compliant RJ45 plug for self termination
  • Accessories include BSX color coded boots in 9 standard colors
  • Cable O.D. 7.0 - 9.5 mm
  • Shell Plating: Black
    •
