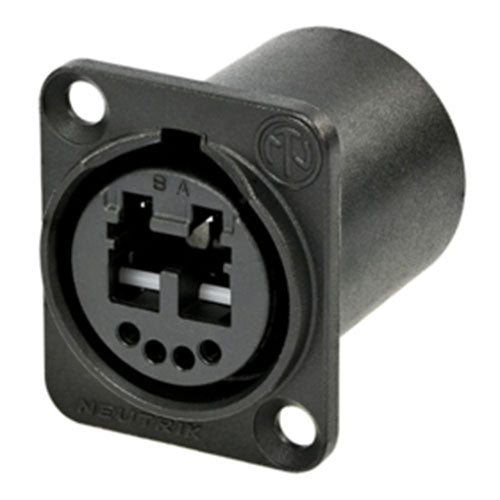

Neutrik NO2-4FDW-1-A opticalCON Duo Chassis Feedthrough Connector, Black

Neutrik NO2-4FDW-1-A opticalCON Duo Chassis Feedthrough Connector, Black

NEUNO24FDW1A

$114.16 USD
$114.16 USD
Sale Sold out
Neutrik NO2-4FDW-1-A opticalCON Duo Chassis Feedthrough Connector, Black

Neutrik opticalCON Duo Chassis connector with black chromium plating, 4 solder contacts, 1 LC-Duplex feedthrough socket and 1 shell ground contact (for SMPTE cable shield), waterproof acc. to IP 65, front panel mount (when used with rubber gasket SCDP, sold separately).

The opticalCON chassis connector acts as a "feed-through" allowing simplified installations by connecting a conventional LC-Duplex on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.

Not compatible to SMPTE 344M standard. Suitable for indoor (studio) camera links considering specific conditions acc. to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage.

Features & Benefits

  • Suggested OEM equipment connector due to LC front compatibility
  • Designed as feed through with automatic sealing shutter
  • Shutter with silicone gasket protects optical connection from dust and dirt
  • Accommodates standard LC connectors on the rear for simple installation
  • Connection on the front side either by rugged opticalCON or standard LC connector
  • The low cost of the chassis connector makes it a viable alternative to traditional connectors in fixed installations
  • Water resistant according to IP65 ingress protection in mated condition, when using rubber gasket SCDP (sold separately)
  • In case of limited space the chassis can be mounted without rubber gasket. IP rating for this is IP 52
  • Color coded rubber sealing gasket SCDP (sold separately) to identify fiber mode: Multimode - black: Single mode PC - blue: Single mode APC - green
    •
