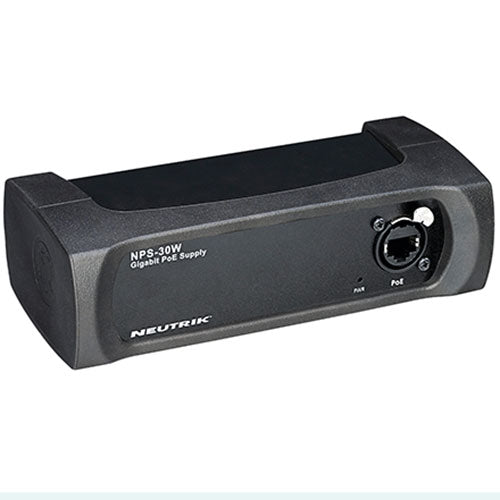

Neutrik NPS-30W-WOC PoE Injector

Neutrik NPS-30W-WOC PoE Injector

NEUNPS-30W-WOC

$158.00 USD
$158.00 USD
Sale Sold out
Neutrik NPS-30W-WOC PoE Injector, powerCON TRUE1 TOP & etherCON Connectors (no cable)

NPS-30W is Neutriks answer to increasing demand for PoE injectors. It is the worlds first PoE injector made for harsh stage conditions, with lockable power and network connectors. NPS-30W is a convenient companion for any PoE application, not just Neutriks network products.

As a passive Power Sourcing Equipment device, NPS-30W acts like a classic power supply, requiring no power negotiation with attached powered devices. NPS-30Ws total power budget of 30W allows it to simultaneously power, for example, up to 4 NA2-IO-DPROs in daisy-chain mode, making NPS-30W ideal for various scenarios such as ambient miking.

Features and Benefits:

  • NPS-30W-WOC does not include a power cable. (Requires poweCON TRUE1 TOP to NEMA5 cable, sold separately)
  • Perfect for use with Neutrik network devices, such as the NA2-IO-DPRO, NA2-IO-DLINE, etc.
  • For use with any other network device that requires PoE supply
  • Lockable power and network connectors. (powerCON and etherCON)
  • Heavy Duty PoE supply for rugged stage conditions
  • 30 W PoE budget
  • 1 Gbps speed
  • 48 V DC power output
  • Different mounting option, sold separately. (rack, truss, floorbox, table mounting)

    • Specifications:

  • Input Voltage Range: 100 - 240 VAC
  • Input Frequency Range: 50 - 60 Hz
  • Input Max. Current: 0.75 A
  • Output Voltage: 48 VDC
  • Output Max. Current: 0.63 A
  • Rated Power: 30 W
  • Weight: 0.53 kg / 1.17 lbs
  • Dimensions (with rubber protection): 6.4 inches x 3.2 inches x 2.0 inches
  • Dimensions (without rubber protection): 5.9 inches x 2.6 inches x 1.6 inches
  • Operating Environment: Indoor
  • Operating Temperature: -5°C to +50°C
  • Storage Temperature: -40°C to +150°C
    •
