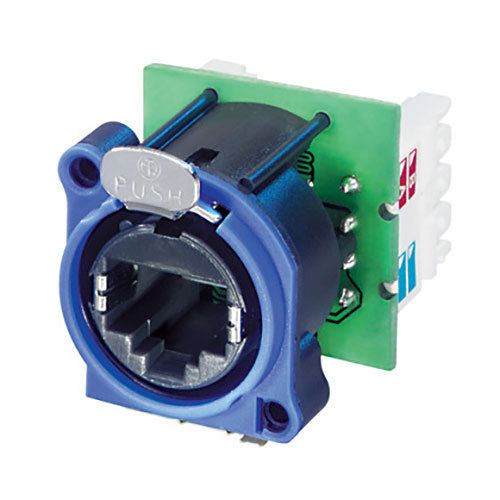

Neutrik RJ45 110 IDC Punchdown Receptacle

Panel mount receptacle with IDC 110 punch down terminals, XLR A Series cutout with the secure latching system. Max. panel thickness 3 mm. Includes 2 mounting screws.
RJ45 Data Connector / EtherCon« Series
The EtherCon« Series offer both male cable carriers and assembled female receptacles. The cable end offers a robust diecast shell as a carrier for pre-assembled RJ45 plugs. Femalechassis connectors are based on the current NEUTRIK« ôA & B&trade: Series as well the ôD&trade: Series of XLR receptacles with secure latching system - a feature not found on other RJ45 receptacles. Terminationsare horizontal and vertical PCB or IDC, punch down. Color coding is available for both the cable carrier and the receptacles for ease of identification. NEUTRIK« EtherCon« products comply with Category 5 (IDC versions) shielded or unshielded and are compatible for use with 10 Base-T and 100 Base-TX systems.
TECHNICAL DATA

Electrical: Frequency bandwidth: 1 - 100 MHz Number of contacts: 8 Rated current: 1.5 A AWG: 26 - 20 Dielectric strength: 1000 V ac rms Contact resistance: < 10 m Insulation resistance: > 500 M Category 5e

Mechanical: Retention method: latch lock Panel thickness: max. 3 mm²: [0.12"]

Materials: Housing: PBTP 15% GR Strain relief clamp: Ck67, Ni plated Contacts: Bronze CuSn6 Contact surface: Au (gal 0.2 ¦m over Ni plating) Temperat
