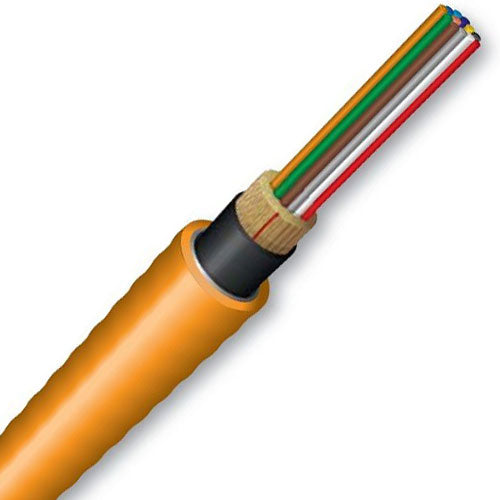

OCC DX006DSLX9YRI2 6-Fiber, Singlemode 9/125, Interlocked Armored Distribution Cable, Riser Rated

OCC DX006DSLX9YRI2 6-Fiber, Singlemode 9/125, Interlocked Armored Distribution Cable, Riser Rated

OCCDX006DSLX9YRI2-01

$1,200.00 USD
$1,200.00 USD
Sale Sold out
OCC DX Series 6-Fiber, Singlemode 9/125, Interlocked Armored Distribution Cable, Riser Rated

OCCs DX-Series Distribution - Aluminum Interlocked Armored (ILA) Riser Rated cables are ideal for industrial and other installations requiring a metallic conduit. Interlocking pre-loaded armor may eliminate the need for conduit, reducing installation costs.

Features:

  • DX006DSLX9YRI2, 6-Fiber, Singlemode 9/125 OS2
  • Cable materials are Indoor/Outdoor – UL-listed OFCR and UV, water and fungus resistant
  • UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building risers or from floor to floor
  • Aluminum interlocking armor with PVC overjacket
  • Interlocking armor can be easily removed leaving an intact inner cable
  • Greater flexibility than standard corrugated steel armored (CST) cables
  • Ideal for locations that require conduit for cable protection
  • Wide operating temperature of -40°C to +85°C
  • Standards: UL 1666: UL 1651: ICEA-S-83-596
    • Specifications:
  • Diameter: 13.1mm (0.5in)
  • Tensile Load: Installation N 1350, (300 lbs)
  • Tensile Load: Operation N 400, (90 lbs)
  • Minimum Bend Radius: Installation 26.2 cm (10.3 in)
  • Minimum Bend Radius: Longer Term 19.7 cm (7.8 in)
    •
