OCC MARS™ Reel for Commercial Applications, 750M Capacity, Black

OCC MARS™ Reel for Commercial Applications, 750M Capacity, Black

OCC-ACR-0750-B-X-1

$343.00 USD
$343.00 USD
Sale Sold out

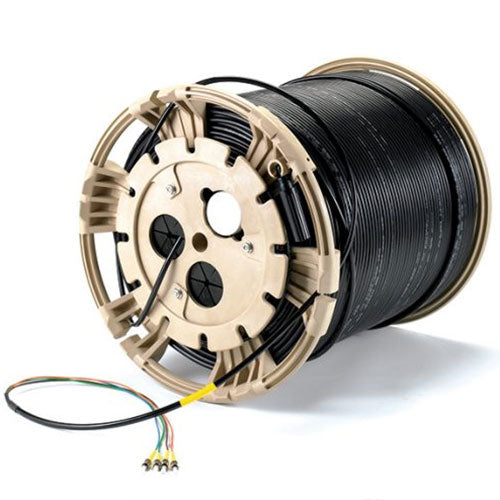

OCC Modular Advanced Reel System (MARS™) Reel, for Commercial Applications, Up to 2900 FT of 0.216" Cable, 1" Round Axle Hole, Black

OCC’s ACR-0750-B-X-1 MARS™ reel is the industry’s first lightweight cable deployment reel system designed specifically for commercial A/V applications that may not require the more demanding needs of harsher-environment applications OCCs AFO-* reels provide. Unlike traditional metal-style reels, MARS is a lightweight, modular system constructed of an impact modified polymer that is easily transported. It is ideal for applications where cable needs to be deployed and reeled in quickly and stored efficiently. MARS also offers a variety of deployment options, including optional frames, backpacks, shipping cases, and cable acquisition platforms. This enables customers to meet the demands of diverse applications and uses with one modular reel and accessories platform.

The OCC MARS reel can be used with simple deployable axles, or with integrated A-frames, cable acquisition cradles, transit case systems, tripods, bumper mounts, various backpacks, backpacks with fiber optic slip rings, or cartridge systems (sold separately).

Features and Specifications:

  • ACR-0750-B-X-1 Capacity: Up to 2900 Feet of 0.216" Diameter Cable
  • Flange Diameter: 17": Hub Diameter: 10": Width: 14.75"
  • Fabricated with an impact absorbing polymer material that provides durability and strength, while remaining lightweight
  • Material also eliminates rust resulting from field operations
  • Integrated cable payout and storage area enable operator to deploy small lengths of cable without having to unspool the entire payload — payout area does not impact cable volume
  • Interlocking stacking system enables reels to be stacked and interlocked during transit
  • Integrated connector storage allows multi-channel cylindrical connectors to be stored and locked in place for transit, and accommodates 0.50" to 2.1" diameter connectors
  • Molded hand openings allow for easy hand transportation and deployment
  • Lightweight retractable crank-and-handle system allows operator to easily reel in deployment or take-up situations and store handle during transit

    • Applications and Uses:

  • Mobile Emergency Telecommunications Stations
  • Mobile Tactical Shelters
  • Broadcast Applications
  • Emergency Restoration and Deployable Communications
    •
