OCC OCA-LFAP1MAP1005 SMPTE311 FLEX Lightweight 7.8mm Camera Cable w/ LEMO Connectors 100 FT

OCC OCA-LFAP1MAP1005 SMPTE311 FLEX Lightweight 7.8mm Camera Cable w/ LEMO Connectors 100 FT

OCA-LFAP1MAP1005-0100F

$1,063.47 USD
$1,063.47 USD
Sale Sold out

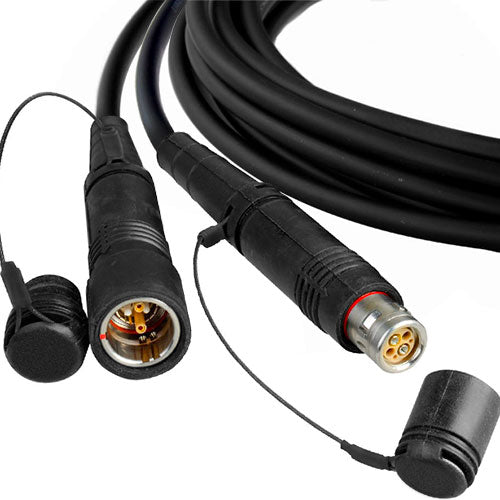

OCC OCA-LFAP1MAP1005 SMPTE311 FLEX Lightweight 7.8mm Camera Cable w/ LEMO Connectors - 100 FT

OCC made, OCA-LFAP1MAP1005 SMPTE FLEX camera cables with LEMO FUW-PUW HFO connectors are lightweight, rugged, and very bend tolerant. Made with mini 7.8mm Ultra-Fox Plus singlemode camera cable with superior shielding. Perfect for mobile production trucks, field and jib-mounted cameras, and any application for hybrid fiber cables where low weight and bend tolerances are important.

These SMPTE-FLEX cables, with LEMO connectors are extremely durable, featuring Ultra-Fox Plus deployable buffer system with triple thickness 500 micron diameter acrylate coating, along with a hard elastomer 900 micron tight buffer for total fiber protection.

OCC SMPTE-FLEX cable outer jackets are made of cut and abrasion resistant polyurethane, much tougher than PVC for rugged field use. Under the jacket, the aramid central strength member allows for increased flexibility compared to other cables with steel strength members. LEMO certified machine polished fiber contacts are protected by their overboots and caps for any tactical demanding applications requiring uncompressed HD video transmissions over longer distances.

OCC SMPTE FLEX / LEMO HFO assemblies meet or exceed SMPTE 304M/311M standards, and are available in a variety of lengths. Custom lengths are also available, please call for pricing.

Specifications:

  • OCC SMPTE FLEX C-006HBAD5KB 7.8 mm Hybrid Fiber Cable
  • Triple Thickness 500 micron Diameter Acrylate Coating
  • Hard Elastomer 900 micron Tight Buffer
  • Two-Channel Bend Tolerant Singlemode Fiber
  • 95% Braided Shield Coverage
  • Minimum Bend Radius: 1.5 in / 3.9 cm
  • Two - 16AWG 65 Copper Conductors
  • Two - 24AWG 65 Copper Conductors
  • LEMO FUW and PUW .3K.93C.TLEC96 SMPTE Straight Fiber HDTV Connectors
  • Stainless Steel Connector Shell
  • Push-Pull Self-Latching Connector System
  • LEMO Protective Over boots and Dust Caps
  • Fast Cleaning interfaces

    • Features and Applications:

  • SMPTE 311 Compatible
  • 7.8 mm O.D. Lightweight Design for Mobile Deployment
  • Cut and Abrasion resistant Polyurethane Jacket
  • Highly Flexible Aramid Central Strength Member
  • Termination by LEMO Certified OCC Technicians
  • Electrical elements 100% continuity and shorts tested
  • Fiber Optic elements 100% attenuation and back reflection tested
  • Conform to LEMO 3K.93C assembly and test standard
    • Applications:
  • Mobile Production Trucks
  • On Stage Stabiized and Jib Mounted Cameras
  • In any application that require cameras to be relocated quickly or often
    •
