Platinum Tools 100020 EZ-RJ45 Shielded Cat5e/6 Connector, Internal Ground Bag of 50

Platinum Tools 100020 EZ-RJ45 Shielded Cat5e/6 Connector, Internal Ground Bag of 50

PLA100020

$67.92 USD
$67.92 USD
Sale Sold out
Platinum Tools 100020 EZ-RJ45 Shielded Cat5e/6 Connector, Internal Ground Bag of 50

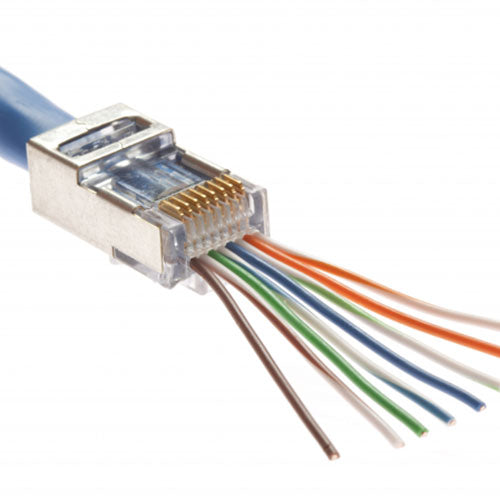

Platinum Tools 100020 EZ-RJ45® for Cat5e & Cat6 fully shielded plug, with an internal ground, combines the performance advantage exclusive to the EZ-RJ45® design with the performance advantage inherent to shielded products to provide an unparalleled solution for the market.

Features and Specifications:

  • EZ-RJ45® design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs
  • Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance
  • Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies
  • Significantly improve Shannon capacity
  • Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade
  • Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated
  • RoHS compliant
  • Max Cable OD: 6.60mm (0.260"), Max Insulated wire OD: 1.041mm (0.041")
  • For solid round or stranded wire cables
  • Made in the USA, Patented
  • 50 Bag

    • Application

  • Hospitals < EMI / RFI >, Manufacturing plants, Casinos, Broadcast studios, Buildings in proximity to microwave towers, electrical power stations or towers
  • Can be prepped for use with CAT5e and CAT6+ shielded cable
    •
