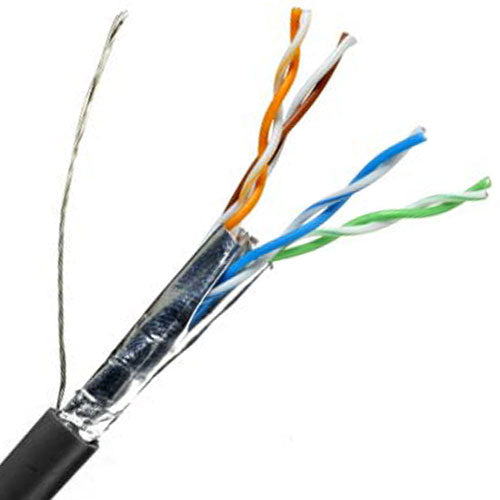

Quabbin 2231 DataMax Patch Mini 6a - 28 AWG, 4 Pair, Shielded, PVC Jacket, Black, 1000 FT

Quabbin 2231 DataMax Patch Mini 6a - 28 AWG, 4 Pair, Shielded, PVC Jacket, Black, 1000 FT

QUA2231BLA-1000F

$388.95 USD
$388.95 USD
Sale Sold out
Quabbin 2231 DataMax Patch Mini 6a - 28 AWG, 4 Pair, Shielded, PVC Jacket, Black, 1000 FT

Quabbin DataMax performance is now available with a 28 AWG reduced diameter profile and patent pending shield engineered specifically for patching and top of rack applications in Category 6a systems. Recognized by the TIA in 20119 in the 568.2-D standard. The smaller gauge copper conductor will meet Category 6a plug to plug electrical and transmission parameters up to 56 meters (183 feet). This smaller more flexible design improves cable density and provides less cross sectional area promoting increased air flow to maximize rack ventilation.

Design Features:

  • 28 AWG Stranded Tinned Copper
  • Twisted Pair Construction
  • Patent Pending Spine-Free Design
  • Insulation: High Density Polyethylene
  • Shield: Aluminum Foil (100% coverage) applied over the cable core, and includes a 28 AWG stranded tinned copper drain wire in contact with the outer shell
  • PVC Jacket
  • Slim design compared to standard 26 AWG Cat 6a, 23% reduction in size, 38% smaller cross sectional area
  • Cable O.D.: .186" NOM, .191" MAX
  • Increased flexibility
  • Tight Bend Radius
  • Improved Cable Density
  • Promotes Maximum Air Flow
  • Made in the USA

    • Applications:

  • Top of Rack
  • Patching Solutions
  • High Density Installations
  • Temperature Sensitive Spaces
  • Secure Networks

    • Listings / Ratings

  • NEC (UL) Type CMR
  • CEC C(UL) Type CMR
    •
    View full details
