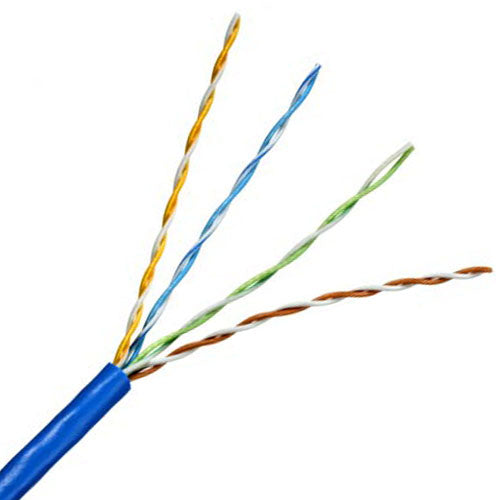

Quabbin 2265 DataMax Patch Mini 6 - 28 AWG, 4 Pair, Unshielded, LSZH Jacket, Blue, 1000 FT

Quabbin 2265 DataMax Patch Mini 6 - 28 AWG, 4 Pair, Unshielded, LSZH Jacket, Blue, 1000 FT

QUA2265BLU-1000F

$456.95 USD
$456.95 USD
Sale Sold out
Quabbin 2265 DataMax Patch Mini 6 - 28 AWG, 4 Pair, Unshielded, LSZH Jacket, Blue, 1000 FT

Quabbin DataMax Mini 28 AWG patch cables are now available with a Low Smoke Zero Halogen Dual Rating. Quabbin 2265 feature a reduced diameter profile and a CM-LS rating, making them ideal for patching and top of rack applications. This smaller more flexible design improves cable density and provides less cross sectional area promoting increased air flow to maximize rack ventilation. TIA compliant per 568.2-D standard in 2018. The smaller gauge copper conductor will meet Category 6 plug to plug electrical and transmission parameters up to 55 meters (180 feet).

Design Features:

  • 28 AWG Stranded Tinned Copper
  • Twisted Pair Construction
  • LSZH Jacket
  • Slim design
  • Cable O.D.: .150: NOM, .155" MAX
  • Increased flexibility
  • Tight Bend Radius
  • Improved Cable Density
  • Promotes Maximum Air Flow
  • RoHS Compliant

    • Applications:

  • Top of Rack
  • Patching Solutions
  • High Density Installations
  • Temperature Sensitive Spaces
  • Secure Networks

    • Benefits:

  • Environmentally Friendly
  • Lower Toxicity (when burned)
  • Safe Alternative to PVC
  • Preferred in many countries

    • Listings / Ratings

  • NEC (UL) Type CM-LS
  • CEC C(UL) Type CM-LS
    •
