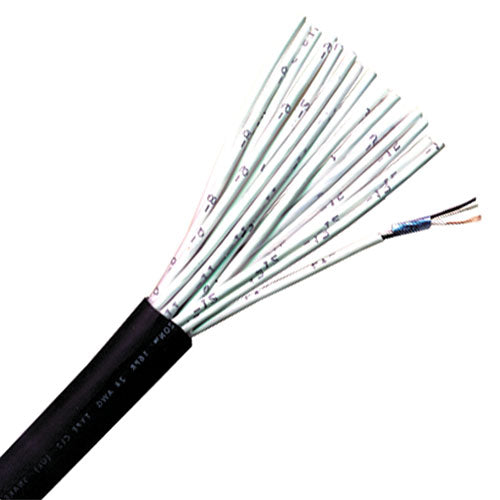

Rapco/Horizon SN12-IJIS 12-Pair 24AWG Audio Snake Cable per Foot

Rapco/Horizon SN12-IJIS 12-Pair 24AWG Audio Snake Cable per Foot

RAPSN12IJIS

$2.63 USD
$2.63 USD
Sale Sold out
RAPSN12IJIS Rapco/Horizon SN12-IJIS 12-Pair 24AWG Audio Snake Cable per Foot

Rapco/Horizon IJIS 12-pair, 24awg stranded bare copper, polypropylene insulated, individually shielded, individually jacketed, overall CL2 PVC jacket, multipair audio snake wire.

Specifications:

  • Cable: SN12-IJIS 12-Pair (individually jacketed, individually shielded)
  • Conductor: 24 AWG, stranded bare copper
  • Shield: 100% Coverage, Alum/polyester tape and tinned copper drain
  • Jacket: Matte PVC
  • Overall O.D.: .60"
  • Capacitance: 25 pF/ft. @ 1 kHz
  • Conductor Shield Capacitance: 45 pF/ft. @ 1 kHz
  • Characteristic Impedance: 60-ohm
  • D.C. Resistance @ 20°C: 24.5 ohms/1000ft
  • Jacket Color: Black
  • Sold per Foot

  • Please note that cable cuts are non-cancelable / non-refundable once the order is placed
    •
