Rapco/Horizon SN28-IJIS 48-Pair 24AWG Audio Snake Cable per Foot

Rapco/Horizon SN28-IJIS 48-Pair 24AWG Audio Snake Cable per Foot

RAPSN48IJIS

$9.26 USD
$9.26 USD
Sale Sold out
RAPSN48IJIS Rapco/Horizon SN48-IJIS 48-Pair 24AWG Audio Snake Cable per Foot

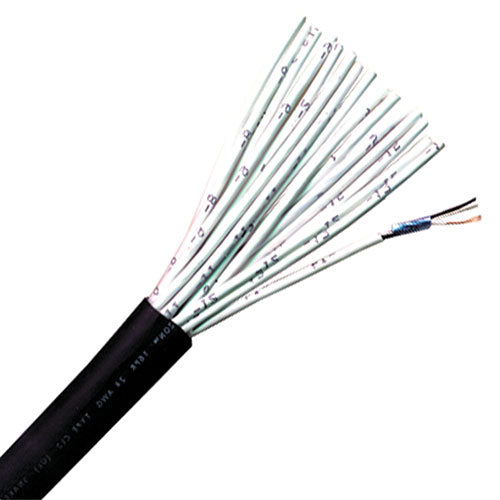

Rapco/Horizon IJIS 48-pair, 24awg stranded bare copper, polypropylene insulated, individually shielded, individually jacketed, overall CL2 PVC jacket, multipair audio snake wire.

Specifications:

  • Cable: SN48-IJIS 48-Pair (individually jacketed, individually shielded)
  • Conductor: 24 AWG, stranded bare copper
  • Shield: 100% Coverage, Alum/polyester tape and tinned copper drain
  • Jacket: Matte PVC
  • Overall O.D.: 1.14"
  • Capacitance: 25 pF/ft. @ 1 kHz
  • Conductor Shield Capacitance: 45 pF/ft. @ 1 kHz
  • Characteristic Impedance: 60-ohm
  • D.C. Resistance @ 20°C: 24.5 ohms/1000ft
  • Jacket Color: Black
  • Sold per Foot

  • Please note that cable cuts are non-cancelable / non-refundable once the order is placed
    •
