Sommer Cable 500-0281-2 SC-Monolith 2 HV DMX/Power Combo Cable - per foot

Sommer Cable 500-0281-2 SC-Monolith 2 HV DMX/Power Combo Cable - per foot

SOM500-0281-2

$3.49 USD
$3.49 USD
Sale Sold out
Sommer Cable 500-0281-2 SC-Monolith 2 HV DMX/Power Combo Cable - per foot

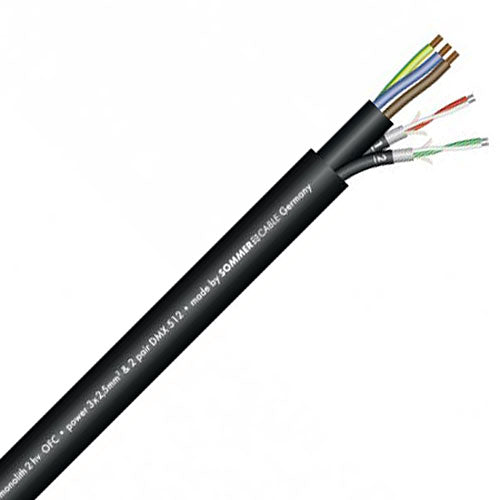

Sommer Cable 500-0281-2 SC-Monolith 2HV DMX / Power combination cable consists of a power cable and two DMX 512 lines. Each DMX wire pair is shielded by a tinned helical copper mesh. The power cable was developed in compliance with VDE and has its own jacket for extra safety.

Of course the AES/EBU cable can also be used as a microphone cable or as a feed line for active loudspeaker systems.

Features and Specifications:

  • Parallel control for lighting boards through one cable via power line and DMX signal
  • Very flexible and enormously tread-resistant due to the round jacket made of cotton and viscose
  • Very good pairwise shielding of the DMX lines due to tinned helical copper mesh screen or copper braiding
  • Properties: Analog
  • Properties: Digital 110-ohm AES / EBU
  • Properties: OFC Oxygen Free Copper
  • Shielding (AES/EBU, DMX): braided mesh, tin-plated
  • AWG (AES/EBU, DMX): 23
  • AWG (power): 13
  • Jacket Material: PVC
  • Cable O.D. - .629 in. (16.0 mm)

    • Applications:

  • Control line for DMX lighting consoles (wave impedance of 0 Ohms)
  • Analogue + digital audio multipair with power supply
    •
