Sommer Cable 520-0051 DMX Binary 234 AES/EBU MKII Cable - per foot

Sommer Cable 520-0051 DMX Binary 234 AES/EBU MKII Cable - per foot

SOM520-0051

$0.84 USD
$0.84 USD
Sale Sold out

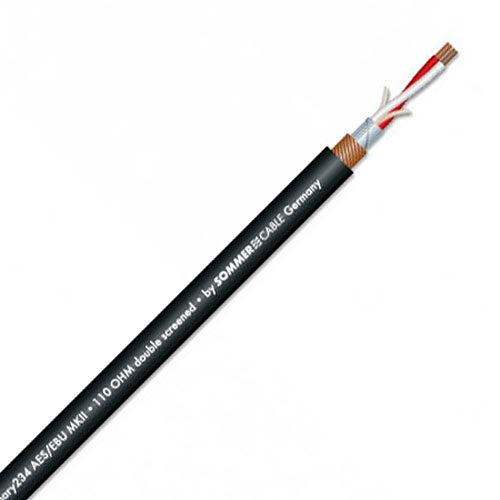

Sommer Cable 520-0051 DMX Binary 234 AES/EBU MKII Cable - per foot

Sommer Cable DMX Binary 234 AES/EBU MKII is an outstanding cable for the transmission of digital signals in the 110-Ohm AES/EBU and DMX data format. The cables shielding is provided by an aluminum-vaporised fleece and a helical copper mesh screen with 100 % coverage. So it offers a very good protection against electric and magnetic interferences. This cable ensures an error-free data transfer over distances of up to 1000 metres. With the Binary 234 AES/EBU MKII you’ll be on the safe side.

Features and Specifications:

  • AES/EBU- and DMX-conformant, highly flexible
  • Very good shielding due to the use of a helical copper mesh screen plus an aluminium-vaporised fleece
  • Extremely rugged due to the special tough jacket
  • Properties: Digital 110-Ohm AES/EBU
  • Conductors: OFC Oxygen Free Copper
  • AWG: 22
  • Jacket Material: PVC
  • Cable O.D. - .244 in. (6.2 mm)

    • Applications:

  • Live Stage, Studio/Broadcast, Installation
  • Networking of scanners, lighting systems, digital mixing consoles etc.
  • For indoor and outdoor installation
  • Connection of digital audio amplifiers, DAT recorders etc
    •
