Sommer Cable 580-0311-04 Mercator 4-Channel CAT7 Cable - per foot

Sommer Cable 580-0311-04 Mercator 4-Channel CAT7 Cable - per foot

SOM580-0311-04

$6.62 USD
$6.62 USD
Sale Sold out

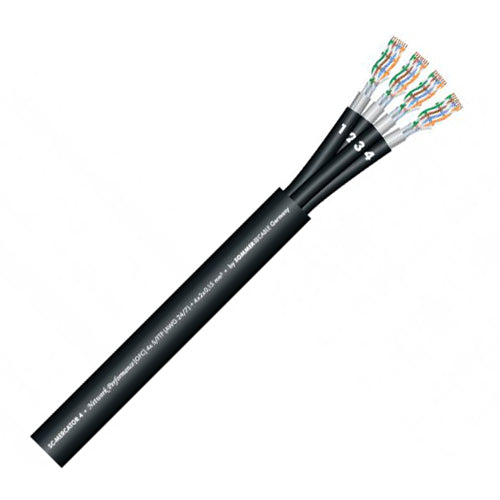

Sommer Cable 580-0311-04 SC-Mercator 4xCAT.7 PVC Multipair Cable - per foot

Sommer Cable SC-Mercator multipair cable with four CAT.7 lines in a highly flexible and robust Strong PVC jacket. The overall construction results in good flexibility, and each of the network lines is shielded against external interferences by an overall braided copper mesh shield, plus a foil shield per wire pair (PimF). With 10 Gbit-capable SC-Mercator 4 x CAT.7, up to 4 high-speed ethernet or compatible signals can be transmitted simultaneously.

Features and Specifications:

  • Four high-speed lines in one robust jacket
  • Full CAT.6a functionality / 10 GBit
  • Redundant transmission capability
  • Highly flexible due to fine litz construction
  • Properties: Digital 110-ohm AES / EBU
  • Properties: OFC Oxygen Free Copper
  • Jacket Material: PVC
  • Cable O.D. - .8858 in. (22.5 mm)
  • Number of Channels (Network): 4
  • AWG (network): 24
  • Shielding: PimF, Copper braiding tin-plated
  • Shielding Factor: 100%
  • CAT Type: CAT.7
  • Impedance: 100 Ohm

    • Applications:

  • Multipair Cat.7
  • Linking of sound and light direction via separate networks
  • For quick and efficient cabling, e.g. of LED video wall systems
  • For all CAT.5e, CAT.6, CAT.6a and CAT.7 transmissions
  • Application Area: Installation, Studio/Broadcast, Stage/Live
    •
