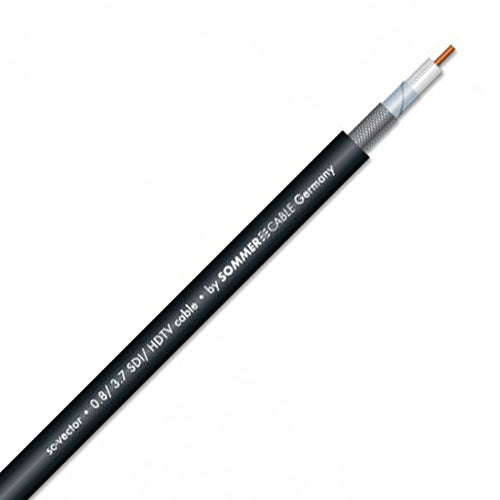

Sommer Cable 600-0161 SC-Vector 20AWG Video Coax Cable - per foot

Sommer Cable 600-0161 SC-Vector 20AWG Video Coax Cable - per foot

SOM600-0161

$0.51 USD
$0.51 USD
Sale Sold out
Sommer Cable 600-0161 SC-Vector 20AWG Video Coax Cable - per foot

Sommer Cable 600-0161 SC-Vector 20AWG Video Coax Cable with its 1.5 Gb/s data transmission rate guarantees a low return loss. Of course, the SC-Vector can also serve as a high-quality standard video line for studio or OB van applications. With its dual shielding and outstanding damping values it offers numerous benefits compared to simple video cables. The SC-Vector (RCB) is used in OB vans, digital TV, at sporting events, live shows or other large events.

Features and Specifications:

  • Low damping values for long distances
  • Robust and durable outer sleeve
  • Properties: 6G-SDI
  • Properties: Digital 75-Ohm
  • Properties: OFC Oxygen Free Copper
  • Max. transmission rate (SDI): 722 ft. (220 m)
  • Max. transmission rate (3G-SDI): 525 ft. (160 m)
  • Max. transmission rate (6G-SDI): 229 ft. (70 m)
  • Shielding (video): AL / PT-foil + Copper braiding tin-plated 85 %
  • AWG (video): 20
  • Conductor Insulation: Gas Injected-PE
  • Jacket Material: PVC
  • Cable O.D. - .236 in. (6.0 mm)

    • Applications:

  • Digital SDI/HD-SDI long distance transmission
  • Video transmission for OB van technolog
  • Application Area: Installation: Studio/Broadcast: Mobile Outdoor/Indoor
    •
