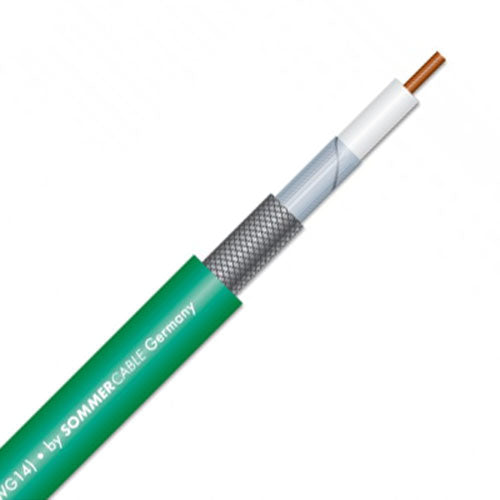

Sommer Cable 600-0234 SC-Vector Plus RCB 12G-SDI Video Cable, Green - per foot

Sommer Cable 600-0234 SC-Vector Plus RCB 12G-SDI Video Cable, Green - per foot

SOM600-0234

$1.28 USD
$1.28 USD
Sale Sold out
Sommer Cable 600-0234 SC-Vector Plus RCB 12G-SDI Video Cable, Green - per foot

Sommer Cable 600-0234 SC-Vector Plus RCB 12G-SDI Video Cable is a great choice for the full range of mobile HD-SDI / UHD video applications, with excellent flexibility due to its stranded OFC conductor. Ultra-low damping values below 30 dB @ 2.97 Gbit/s are provided by the large 14 AWG OFC inner conductor with its special Gas Injected-PE insulation plus dual shielding.

Advantages include:

  • Long life due to non-aging jacket
  • Constant optimised electrical values owing to intelligent cable design
  • Gas injected skin-foam-skin insulation for optimal damping values and long distances

    • Features and Specifications:

  • Properties: 3G-SDI / UHD
  • Impedance: 75-Ohm
  • 16 AWG OFC Oxygen Free Copper conductor
  • 7 strand litz center conductor
  • Jacket Material: PVC
  • Conductor insulation material: Gas Injected-PE
  • Shielding: Copper braiding tin-plated + AL / PT foil
  • Cable O.D. - .4015 in. (10.2 mm)
  • Jacket Color: Green

    • Applications:

  • Digital HD-SDI and 3G-SDI video transmission in the professional broadcast/OB van/studio sector, HF technology and antenna construction
  • Mobile 3G HD-SDI up to 12G-SDI transmissions
  • Professional media-technical permanent installation according to 3G standard

    •
