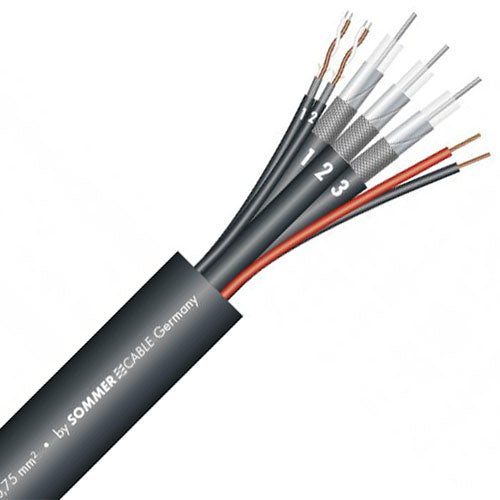

Sommer Cable 600-3202 Transit MC 3202 UHD Hybrid Cable - 100 Meter

Sommer Cable 600-3202 Transit MC 3202 UHD Hybrid Cable - 100 Meter

SOM600-3202-100M

$1,981.12 USD
$1,981.12 USD
Sale Sold out
Sommer Cable 600-3202 Transit MC 3202 UHD Hybrid Cable - 100 Meter

3 - 18 AWG UHD Video Channels: 2 - 26 AWG AES/EBU Audio Channels: 2 - 18 AWG Control/Power Lines, under one jacket

Sommer Cable Transit MC 3202 UHD Hybrid cable combines 3 AWG18 UHD-SDI Video, 2 AWG26 AES/EBU Audio Channels, and 2 AWG18 control/power lines, under one rugged PVC jacket. Transit MC 3202 is a great all around long distance UHD video specialist.

Ultra High Definition formats UHD-1 with 4K (3840 x 2160p) and 8K (7680 x 4320p) are more and more replacing the Full HD standard (1080p). These much higher resolutions are also a challenge for broadcast production devices such as cameras, monitors, editing consoles and their connection and transmission technology. Sommer Transit MC 3202 may just be your answer.

Advantages:

  • Compact hybrid cable with 3 x UHD Video, 2 x digital audio, and camera power supply lines
  • Low attenuation values for long distance transmissions
  • 3-in-1 cable, flexible and easy to reel for tough usage

    • Features and Specifications:

  • Properties: 6G-SEI, 3G-SDI, SDI/HD-SDI, Digital 75-Ohm
  • Properties: OFC Oxygen Free Copper
  • AWG (3 video): 18
  • AWG (2 audio): 26
  • AWG (2 power): 18
  • Overall Jacket Material: PVC
  • Wire insulation material (video): Foam / Skin-PE/li>
  • Cable O.D. - .8228 in. (29.5 mm)

    • Applications:

  • Combi line for UHD cameras, UHD monitors etc.
  • Digital UHD-SDI transmission incl. digital audio and power
  • Digital HD-SDI long-distance transmission including digital audio network and power supply
  • Ideal for broadcasting van applications, sporting events and big live events
  • Studio/Broadcast, Mobile outdoor/indoor, installation
    •
