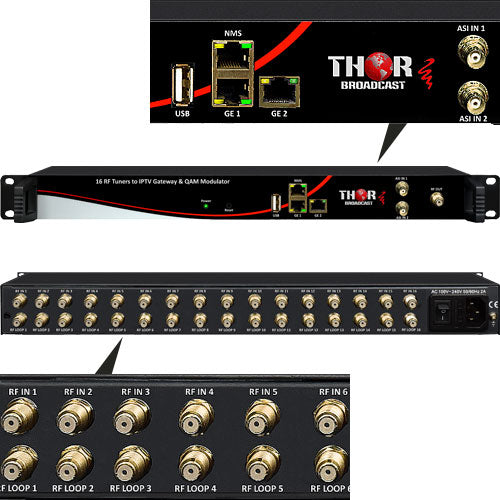

Thor H-16QAM-IP-RF 16 RF Tuners to IPTV TS & QAM Output

Thor H-16QAM-IP-RF 16 RF Tuners to IPTV TS & QAM Output

THOH-16QAM-IP-RF

$4,495.00 USD
$4,495.00 USD
Sale Sold out
Thor H-16QAM-IP-RF 16 RF Tuners to IPTV TS & QAM Output Decoder

Thors newly designed high density demodulating IP Gateway has 16 DVB-S/S2 FTA tuner inputs that convert to 16 non-adjacent carrier outputs with multiplexing, scrambling and QAM modulaton included. It also supports a maximum 512 IP inputs and one IP (MPTS) output through GE1 and TS input for re-mux through 2 ASI ports. It supports dual power supply (optional). This is the next generation of Gateways of which will create a seemless conversion of RF programs to IP TS that are easily managed via a secure NMS system developed by Thor to help distribute all of your programs via IP and ASI.

Design Features:

  • 16 DVB-S/S2 FTA Tuner + 2 ASI input + 512 IP (GE1 only) input over UDP and RTP protocol
  • 16 DVB-C RF output
  • Excellent RF output performance index, MER=40db
  • 16 groups multiplexing +16 groups scrambling +16 groups QAM modulating
  • 1 IP(MPTS) output over UDP and RTP/RTSP
  • Accurate PCR adjusting
  • PSI/SI editing and inserting
  • Web management, Updates via web
  • Redundant Power Supply (optional)

    • Specifications:

  • Input: 16 DVB-S/S2 FTA Tuner: 512 IP (GE1only)input over UDP and RTP protocol: 2 ASI input, BNC interface
  • Tuner Section - DBS-S:
    Input Frequency: 950-2150MHz
    Symbol Rate: 2-45Msps
    Signal Strength: -65~-25dBm
    FEC Demodulation: /2, 2/3, 3/4, 5/6, 7/8 QPSK
  • Tuner Section - DBS-S2:
    Input Frequency: 950-2150MHz
    Symbol Rate: QPSK 1~45Mbauds: 8PSK 2~30Mbauds
    Code Rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    Demodulation Mode: QPSK, 8PSK
  • Maximum PID Remapping: 128per input channel
  • PID remapping (automatically or manually)
  • Accurate PCR adjusting
  • Generate PSI/SI table automatically
  • Max simulscrypt CA: 4
  • Scramble Standard: ETR289, ETSI 101 197, ETSI 103 197
  • Connection: Local / remote connection
  • QAM Channel: 16 non-adjacent carriers
  • Modulation Standard: EN300 429 / ITU-T J.83A / B
  • RF frequency: 50~960MHz, 1KHz step
  • RF output level: -20~+10dbm(87~107 dbµV),0.1db step
  • Symbol Rate: 5.0 - 7.0Msps, stepping 1ksps
  • Constellation: 16, 32, 64, 128, 256QAM
  • Bandwidth: 8M, 6M
  • Remote Management: Web NMS (10M/100M
  • RF Out: 16 DVB-C output
  • IP Out: 1 IP (MPTS) output over UDP and RTP/RTSP (GE1 only) Mirrors one carrier
  • Language: English
  • Software Upgrading: Web
  • Dimensions (W x L x H): 19" × 11.8" × 1.75"
  • Weight: 8.5 lbs
  • Operating Temperature: - 0 - 45° C
  • Storage Temperature: -20 - 80° C
  • Power Supply: AC 100V ± 10%, 50 / 60Hz or 220V AC ± 10%, 50 / 60Hz
  • Power Consumption: 25W
    •
