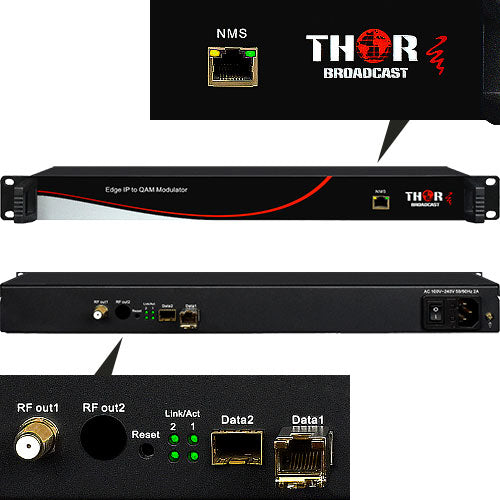

Thor H-IPRF-16QAM IPTV to 16 Clear Channel RF QAM/ASTC Modulator
The THOR H-IPTV-16 QAM modulator is a simple all-in-one utility device to convert up to 1024 IP Transport Streams in UDP / RTP into 16 non-adjacent QAM Channels. This Thor Broadcast high-density IP to QAM modulator is designed to take content delivered via an IP backbone or CDN system and modulate the programming onto digital QAM cable channels for distribution over coax. This product includes a 1RU chassis supporting two individual Ethernet inputs injecting up to 840Mbps on each Ethernet RJ45 connector outputs all programming onto a single RF F-Type connector for easy output into your RF Coax infrastructure. This single RU form factor allows you create your own IPTV to RF headend in a single chassis. All QAM Channels and IP inputs are managed from the easy to use NMS RJ45 port connection on the front of the unit allowing you to quickly and easily access your programming from Thor’s easy to read GUI that can be accessed from anywhere on your network. The IPTV programming input is standard headend format, meaning basic UDP / RTP unicast/multicast IGMP v2 / v3 addresses and port format. This impressive density allows a single chassis to convert an IPTV Ethernet backbone feed to be converted to a full line-up of digital cable DVB-C channels for easy distribution.
Design Features:
IPTV Modulator includes 2x Gigabit Ethernet input interfaces
