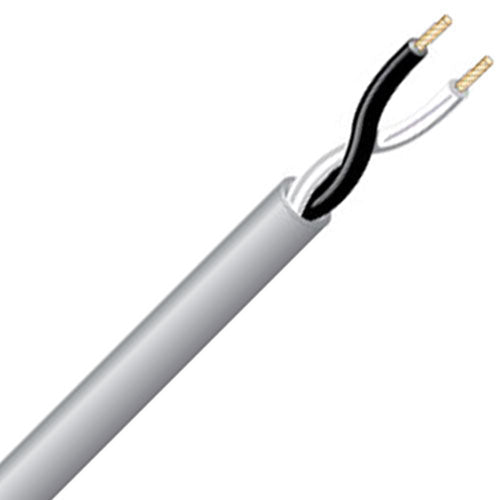

West Penn 25227B 2-Conductor 12AWG Plenum Speaker Cable - Gray, 1000 FT

West Penn 25227B 2-Conductor 12AWG Plenum Speaker Cable - Gray, 1000 FT

WES25227BGY-1000F

$695.00 USD
$695.00 USD
Sale Sold out
West Penn 25227B 2-Conductor 12AWG Plenum Speaker Cable - Gray, 1000 FT

West Penn Wire 25227B 2-conductor 12 gauge plenum rated speaker cable, with stranded bare copper conductors, unshielded with an overall flexible plenum jacket. NEC UL rating CL3P, FPLP. For commercial use indoor for: Intercom, Security, Sound, Audio, Background music in plenum spaces.

Features and specifications:

  • Conductor: 12 AWG Bare Copper
  • Stranding: 19x25
  • Number of Conductors: 2
  • Nominal DCR: 1.7 Ohm/1000ft
  • Shield: None
  • Drain: None
  • Insulation Type: Plenum PVC
  • Insulation Colors: Black, White
  • Jacket Material: Flexible Plenum
  • Jacket Thickness: 0.015 in. Nom.
  • Overall Cable Diameter: 0.263 in. Nom.
  • NEC UL rating: CL3P, FPLP
  • Jacket Color: Gray
  • RoHS Compliant: Yes
  • Pull Tension: 146 lbs
  • Bend Radius: 2.367”
