West Penn 25294B 2-Conductor 16AWG Plenum Shielded Comm Cable 1000 FT

West Penn 25294B 2-Conductor 16AWG Plenum Shielded Comm Cable 1000 FT

WES25294BGY-1000

$418.00 USD
$418.00 USD
Sale Sold out

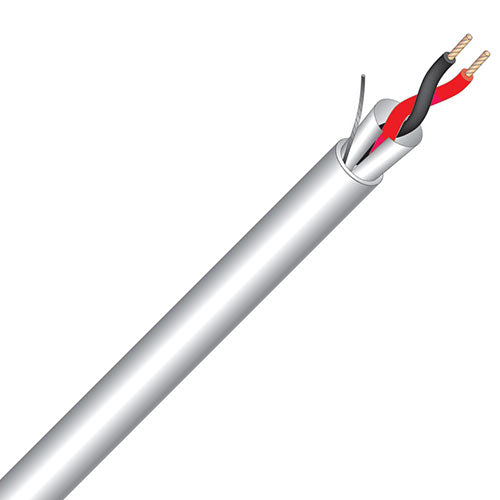

West Penn 25294B 2-Conductor 16AWG Shielded Plenum Communications Cable - Gray, 1000 FT

West Penn Wire 25294B 1-Pair (2-conductor) 16 gauge plenum shielded communications cable, with stranded bare copper conductors, with an overall flexible plenum jacket. NEC UL rating CMP. Application Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control, in plenum spaces.Circuits.

Features and specifications:

  • Conductor: 16 AWG Bare Copper
  • Stranding: 19x29
  • Number of Conductors: 2 (1-pair)
  • Shield: 100% Aluminum Foil
  • Drain: Stranded Tinned Copper, 24AWG
  • Insulation Type: Plenum PVC
  • Insulation Colors: Black, Red
  • Jacket Material: Flexible Plenum
  • Jacket Thickness: 0.015 in. Nom.
  • Overall Cable Diameter: 0.178 in. Nom.
  • NEC UL rating: CMP
  • Jacket Color: Gray
  • RoHS Compliant: Yes
  • Pull Tension: 69 lbs
  • Bend Radius: 1.60”
